VLANs key notes

The following list summarizes the most common reasons for choosing to create smaller broadcast domains (VLANs):

  • To reduce CPU overhead on each device, improving host performance, by reducing the number of devices that receive each broadcast frame.
  • To reduce security risks by reducing the number of hosts that receive copies of frames that the switches flood (broadcast, multicast, and unknown unicasts).
  • To improve security for host through the application of different security policies per VLAN.
  • To create more flexible designs that group users by department, or by groups that work together, instead of by physical location.
  • To solve problems more quickly, because the failure domain is reduced (many problems are in the same set of devices in the same broadcast domain).
  • To reduce the workload for STP by limiting a VLAN to a single access switch.

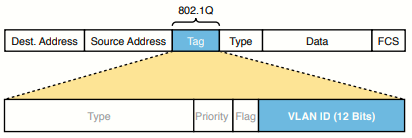

802.1Q inserts an extra 4-byte 802.1Q VLAN header into the original frame’s Ethernet header.


All switches can use normal-range VLANs (1-1005). Only some switches can use extended-range VLANs (1006-4094), and it depends on VTP configuration.

The native VLAN has no trunking header. Meant for a device connected to a switch that does not understand 802.1Q trunking.

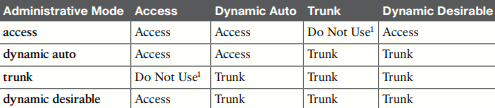

Regarding trunking, switch ports usually default to dynamic auto.


Phones:

  • Voice VLAN: The VLAN defined on the link for forwarding the phone's traffic. Traffic in this VLAN is typically tagger with an 802.1Q header.

CDP must be enabled on an interface for a voice access port to work with Cisco IP phones. Cisco switches and routers enable CDP by default.
