How to access Movistar/O2 HGU GUI from pfSense

Introduction

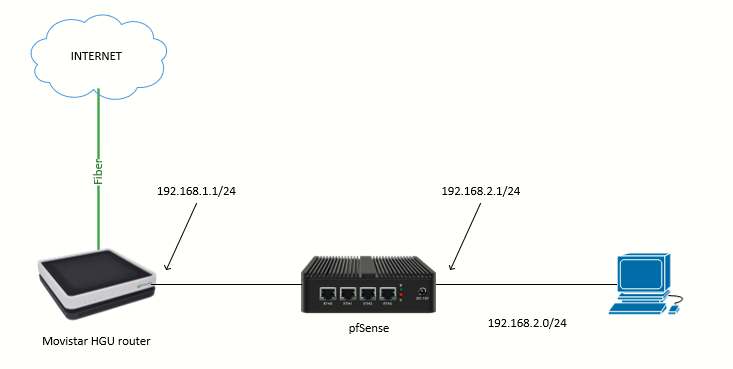

Beginning with the following topology:


With the Movistar HGU router configured in "semi-bridge" mode (bridge mode for the purposes of this article), we want to access its 192.168.1.1 management IP (WEB GUI) from the 192.168.2.0 LAN.

Configuration

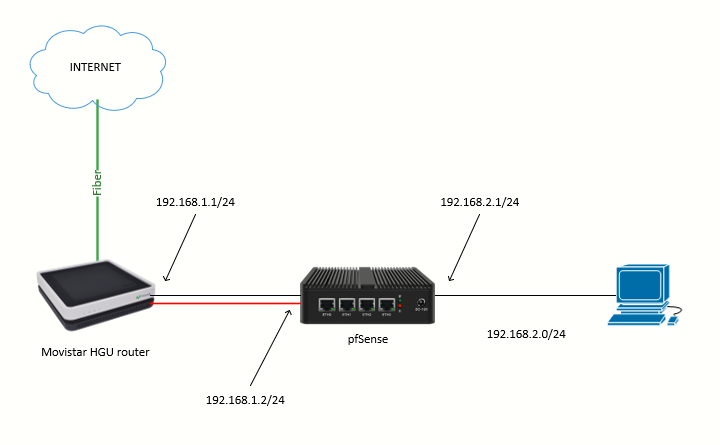

We need to add a physical connection between the pfSense router and the HGU router and configure outbound NAT on that new interface as follows:

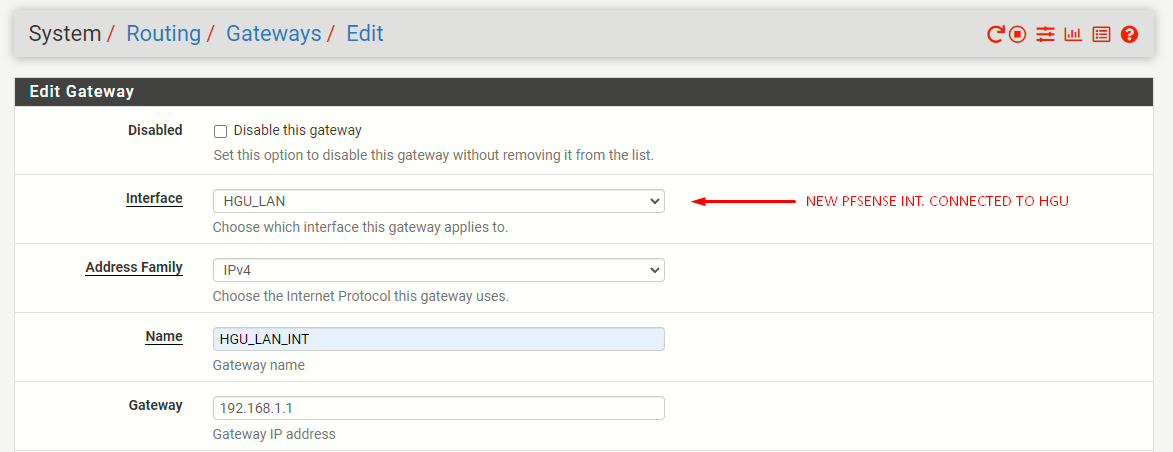

First of all, define a new gateway on the pfSense GUI and assign it the mgmt. IP address of the HGU router.

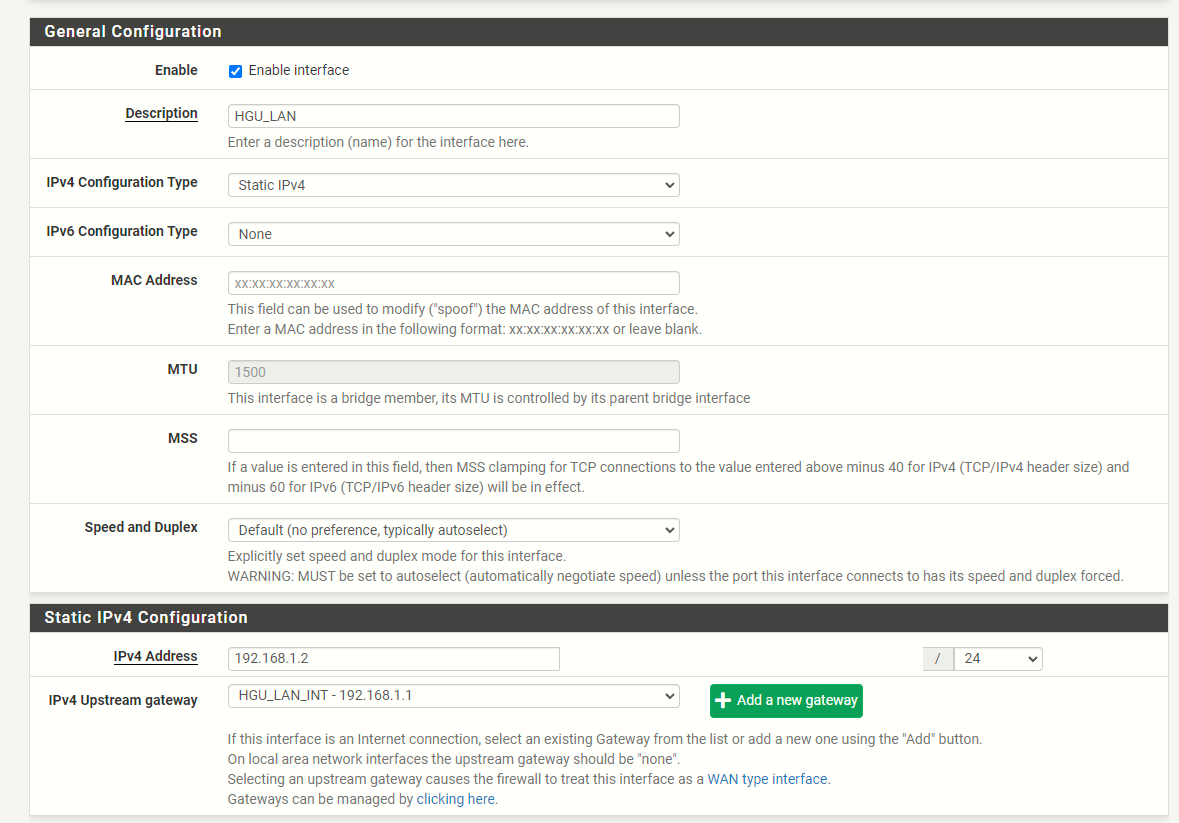

Next, we need to configure the physical interface where this new cable is connected to the HGU:


The parameters to be configured are:

  • IPv4 Configuration Type: Static IPv4
  • IPv4 Address: any address not used in the HGU LAN
  • IPv4 Upstream gateway: the gateway created in the previous step

And last but not least... the outbound NAT.

Outbound NAT, also known as Source NAT, controls how pfSense software will translate the source address and ports of traffic leaving an interface.

This will translate traffic coming from the pfSense LAN on the 192.168.2.0/24 network to the IP on the 192.168.1.0/24 HGU LAN configured on the associated interface (overloading 192.168.1.2). The configuration for the NAT mapping is as follows:

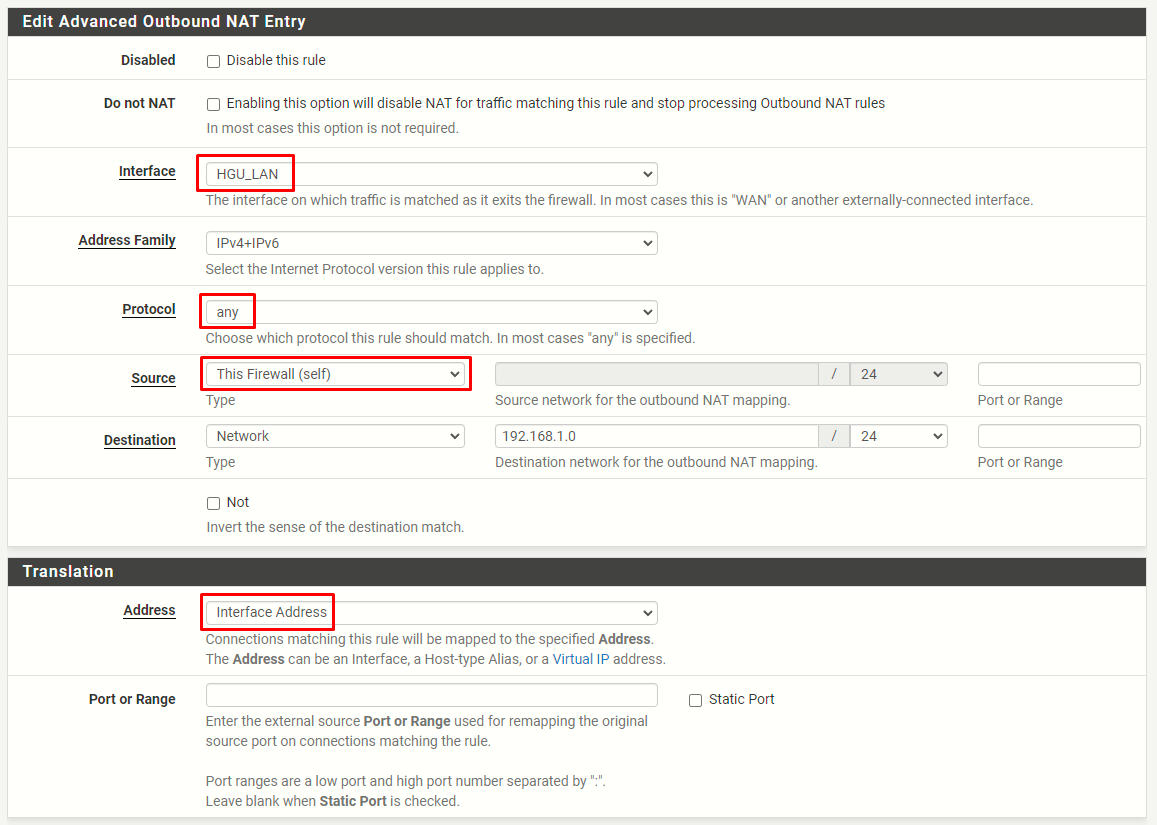

Go to Firewall > NAT > Outbound and create a mapping clicking in the following dropdowns, with these parameters:


The image is self-explanatory.

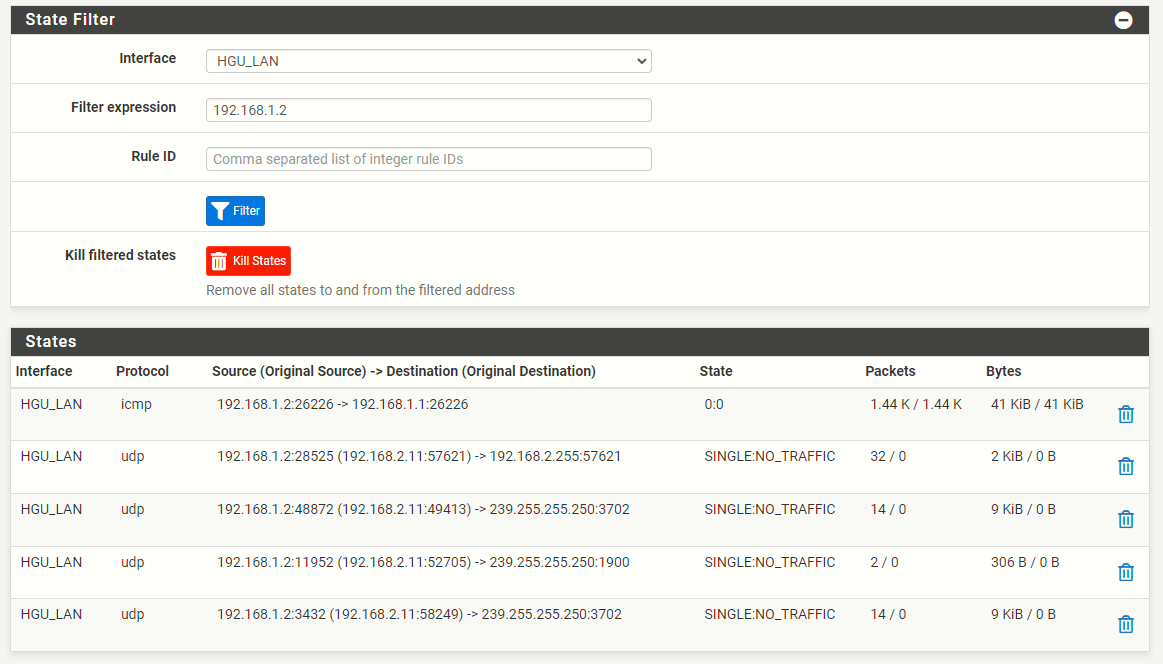

We can see the NAT translations table at Diagnostics > States and filtering by the overloaded IP address of the interface (192.168.1.2):
